Creative Sound Blaster Audigy Platinum eX

Ce produit contient une Carte Sound Blaster Audigy, une carte d'extension Audigy, un Lecteur Audigy externe et de nombreux cables.

Il n'y a rien à faire : ça fonctionne tout seul.

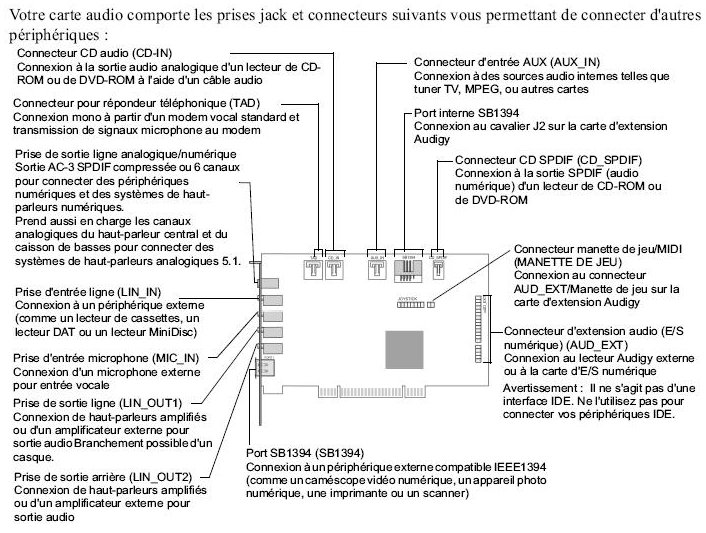

Petit rappel sur les connections de la carte :

Cette télécommande possède une trentaine de boutons, multipliés par deux grâce à un bouton style "MAJ".

Afin que celle-ci fonctionne, il faut modifier le fichier alsa-base.conf

sudo vi /etc/modprobe.d/alsa-base.conf

Ajouter en fin de fichier :

options snd-emu10k1 index=0 enable_ir=1

lirc

Dans le doute, reconfigurer lirc :

sudo dpkg-reconfigure lirc

Choisir "Creative LiveDrive midi" ("Creative LiveDrive sequencer" ne fonctionne plus) et laisser le reste par défaut (il n'y a pas de transmetteur).

Modifier le fichier hardware.conf

sudo vi /etc/lirc/hardware.conf

# /etc/lirc/hardware.conf
#
#Chosen Remote Control
REMOTE="Creative LiveDrive midi"
REMOTE_MODULES=""
REMOTE_DRIVER="livedrive_midi"
REMOTE_DEVICE="/dev/snd/midiC0D1"   <--modifier cette ligne
REMOTE_SOCKET=""
REMOTE_LIRCD_CONF="creative/lircd.conf.livedrive"
REMOTE_LIRCD_ARGS=""
..

Relancer lirc :

sudo /etc/init.d/lirc restart

Et contrôler le processus:

ps -ef|grep lirc

Doit retourner

/usr/sbin/lircd --output=/var/run/lirc/lircd --driver=livedrive_midi --device=/dev/snd/midiC0D1

Pour vérifier que la communication s'effectue bien, utiliser :

irw

Puis, appuyer sur des touches…

Le fichier lircd.conf.livedrive est prévu pour une rm1000w, remplacer ce fichier par les bonnes fréquences :

sudo vi /usr/share/lirc/remotes/creative/lircd.conf.livedrive
# /usr/share/lirc/remotes/creative/lircd.conf.livedrive
#
# brand:                       Creative
# model no. of remote control: rm900
# devices being controlled by this remote:
#
# Note: if you are using this config file with lirc version < 0.8.1
# remove the min_code_repeat entry because it is not supported in former
# versions
#

begin remote

  name rm1000w
  flags SPACE_ENC|CONST_LENGTH
  bits           16
  eps            30
  aeps          100

  header          9000 4500
  one             563  1687
  zero            563  562
  ptrail          563
  pre_data_bits   16
  pre_data       0x8322
  gap          108000
  toggle_bit      0
  min_code_repeat 1
  min_repeat 2

  repeat          9000 2250

  frequency    38000
  duty_cycle   33

      begin codes
          1                        0x0000000000008B74
          s1                       0x0000000000000BF4
          2                        0x0000000000008F70
          s2                       0x0000000000000FF0
          3                        0x000000000000906F
          s3                       0x00000000000010EF
          4                        0x0000000000008A75
          s4                       0x0000000000000AF5
          5                        0x000000000000847B
          s5                       0x00000000000004FB
          6                        0x0000000000007887
          s6                       0x000000000000F807
          7                        0x0000000000008976
          s7                       0x00000000000009F6
          8                        0x000000000000837C
          s8                       0x00000000000003FC
          9                        0x0000000000007788
          s9                       0x000000000000F708
          s0                       0x00000000000000FF
          0                        0x000000000000807F
          stop                     0x000000000000857A
#eject = stop while holding speaker button
          eject                    0x00000000000005FA
          play                     0x0000000000007986
#pause = play while holding speaker button
          pause                    0x000000000000F906
          slow                     0x0000000000007D82
          sSlow                    0x000000000000FD02
          step                     0x0000000000007E81
          sStep                    0x000000000000FE01
          prev                     0x0000000000007F80
          sPrev                    0x000000000000FF00
          next                     0x0000000000007A85
          sNext                    0x000000000000FA05
          mute                     0x0000000000006E91
          sMute                    0x000000000000EE11
          vol-                     0x000000000000639C
          sVol-                    0x000000000000E31C
          vol+                     0x000000000000629D
          sVol+                    0x000000000000E21D
          eax                      0x0000000000008C73
          sEax                     0x0000000000000CF3
          options                  0x000000000000827D
          sOptions                 0x00000000000002FD
          display                  0x0000000000007689
          sDisplay                 0x000000000000F609
          return                   0x0000000000008E71
          sReturn                  0x0000000000000EF1
          start                    0x0000000000008877
          sMenu                    0x00000000000008F7
          close                    0x0000000000007C83
          sClose                   0x000000000000FC03
          up                       0x0000000000007B84
          sUp                      0x000000000000FB04
          down                     0x0000000000008D72
          sDown                    0x0000000000000DF2
          left                     0x0000000000008778
          sLeft                    0x00000000000007F8
          right                    0x000000000000758A
          sRight                   0x000000000000F50A
          ok                       0x000000000000817E
          sOk                      0x00000000000001FE
      end codes

end remote

Configuration des boutons

Comme cela dépend du logiciel utilisé, voici juste un exemple utilisé pour mythtv:

# LIRCRC
# Created for use with Mythbuntu
begin
  remote = rm1000w
  prog = mythtv
  button = 1
  config = 1
  repeat = 0
  delay = 0
end
  begin
  remote = rm1000w
  prog = mythtv
  button = 2
  config = 2
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 3
  config = 3
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 4
  config = 4
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 5
  config = 5
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 6
  config = 6
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 7
  config = 7
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 8
  config = 8
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 9
  config = 9
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = 0
  config = 0
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = stop
  config = Escape
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = play
  config = P
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = pause
  config = P
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = mute
  config = |
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = vol-
  config = [
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = vol+
  config = ]
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = display
  config = i
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = return
  config = Escape
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = close
  config = Escape
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = up
  config = Up
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = down
  config = Down
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = left
  config = Left
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = right
  config = Right
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = ok
  config = Return
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = record
  config = w
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = mute
  config = |
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = vol+
  config = ]
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = vol-
  config = [
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = prev
  config = Home
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = next
  config =   end
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = slow
  config = j
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = sSlow
  config = w
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = sPrev
  config = ,
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = sNext
  config = u
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = start
  config = m
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = sMenu
  config = e
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = options
  config = f
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = sOptions
  config = t
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = sDisplay
  config = w
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = s1
  config = Ctrl+M
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = s2
  config = Ctrl+F
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = s3
  config = y
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = s4
  config = Ctrl+P
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = irexec
  button = step
  config = /home/mythtv/scripts/remythtv.sh
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = irexec
  button = sStep
  config = /home/mythtv/scripts/mythtvprojo.sh
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = s6
  config = d
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mythtv
  button = s5
  config = s
  repeat = 0
  delay = 0
end
## vlc
begin
  remote = rm1000w
  prog = vlc
  button = stop
  config = key-quit
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = play
  config = key-play
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = pause
  config = key-pause
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = return
  config = key-quit
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = up
  config = key-nav-up
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = down
  config = key-nav-down
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = left
  config = key-nav-left
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = right
  config = key-nav-right
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = ok
  config = key-nav-activate
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = next
  config = key-title-next
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = prev
  config = key-title-prev
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = sNext
  config = key-jump+short
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = sPrev
  config = key-jump-short
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = s3
  config = key-slower
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = slow
  config = key-faster
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = display
  config = key-position
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = vlc
  button = start
  config = key-disc-menu
  repeat = 0
  delay = 0
end
## mplayer
begin
  remote = rm1000w
  prog = mplayer
  button = stop
  config = quit
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = play
  config = pause
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = pause
  config = pause
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = return
  config = quit
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = start
  config = pause
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = up
  config = seek +60 0
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = down
  config = seek -60 0
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = left
  config = seek -6 0
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = right
  config = seek +6 0
  repeat = 0
  delay = 0
end
begin
  remote = rm1000w
  prog = mplayer
  button = ok
  config = pause
  repeat = 0
  delay = 0
end
  • audigy_platinum_ex.txt
  • Dernière modification: Le 31/08/2022, 23:36
  • par moths-art
